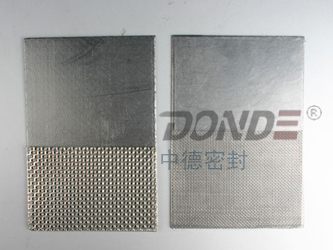

        Reinforced(Tanged) Graphite Sheet

        Item No.:ZD-GS1110

        Description:Reinforced expanded graphite sheet is comprised of expanded graphite sheet and various steel sheets such us tanged, flat or mesh. Reinforced expanded graphite sheet has character of thermally stability, high strength and no cold flow etc. Reinforced expanded graphite sheet is an ideal material of all kinds of reinforced graphite gaskets, engine heat gaskets etc.There are many kinds of reinforced expanded graphite sheet.Such as reinforced expanded graphite sheet with ss304/304L insert,reinforced expanded graphite sheet with ss316/316L insert,Reinforced expanded graphite sheet with tinplate insert,ect.

        Suitable Working Condition::

        Pressure

        20MPa

        Temperature

        200-600℃(in the air)

        Production Standard

        JB/T6628-93

         Routine Size:

        Thickness(mm)

        width(mm)

        Length(m)

        Tanged Style

        Plain Metal Sheet

        <=1500

        =<4

        1.0~3.0

        0.8~3.0

        Main specification:

        Reinforce Material

        Configuration

        Pressure(N/mm2)

        Temperature(℃)

        Oxidizing Condition

        Non Oxidizing Condition

        Tanged CS Sheet
        (Thickness: 0.2~0.25)

        >=48

        -10~450

        -10~500

        AISI304,316 Tanged

        (Thickness:0.1~0.127)

        >=48

        -240~450

        -200~600

        AISI304,316 Plain Sheet)
        (Thickness: 0.05~0.1)

        >=45

        -240~450

        -200~600

        AISI304,316 Mesh

        >=40

        -240~450

        -200~600



        Reinforce Material

        Configuration

        Compressibility

        Recovery

        Sealing Constant(1.5mm)m1/hr

        N2

        oil

        Tanged CS Sheet
        (Thickness: 0.2~0.25)

        30~35

        15~20

        30

        <0.5

        AISI304,316 Tanged

        (Thickness:0.1~0.127)



        30~40

        15~30

        60

        <0.5

        AISI304,316 Plain Sheet)
        (Thickness: 0.05~0.1)

        40~50

        10~15

        35

        <0.5

        AISI304,316 Mesh

        30~35

        15~20

        7000

        58

        The Content of Graphie Layer:

        Item

        Unit

        Value

        Tolerance of Density

        g/cm3

        -0.06~+0.06

        Tolerance of Thickness

        mm

        -0.04~+0.04

        C concentration

        %

        >=99

        Tensile strength

        MPa

        4.5

        Compressibility

        %

        >40

        Recovery

        %

        >10

        S concentration

        ppm

        <1100

        Chlorine concentration

        ppm

        <45

        Type Of Reinforced Graphite Sheet:

        ZD-G1100

        Tin-plate Tanged Graphite Sheet

        ZD-G1110

        SS304 Tanged Graphite Sheet

        ZD-G1120

        SS316 Tanged Graphite Sheet

        Others Can be supplied according to customer's requirement.
