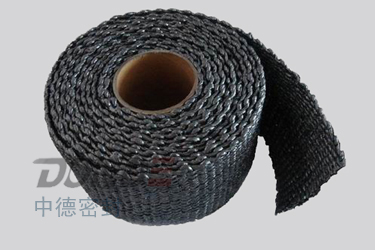

Flexible
Graphite Weaven Tape(Cloth)
Item No.:ZD-T3200/ZD-T3300
Description:This
kind of graphite tape(cloth)
is weaven closely from graphite yarn.Graphite weaven tape is flexible
and used as gland packing or gasket material.It has better tensile
strength than normal graphite tape,and it is substitute of asbestos
thermal insulating materials.Graphite weaven tape cab also be reinforced
with metal wire to enhance the capability.The self-adhesivet graphite
weaven tape is also available.It is easy to cut and install. Graphite fibre weaven tape.The users don't need complicated tools to cut
and install it.So there is no waste of material and it's really economic
sealing material to save time and money.This kind of graphite tape is
usually used to urgent fix.
The application:It is used
as gasket tape and it's specially suitable for the flange with
granulated surface.It's usually used in heat
exchanger,boiler,pipeline,the cover of furnace,flange shell,ect.
Main specification：
|
WORKING TEMPERATURE |
-200～800℃ |
|
STANDARD LENGTH |
30 M |
|
PH VALUE |
0～14 |
|
WIDTH |
25～100MM |
|
DENSTIY |
1.1~1.3 g/cm3 |
|
DENSITY TOLERANCE |
±0.1 g/cm3 |
|
THICKNESS |
1.5～6.0mm |
|
THICKNESS TOLERANCE |
±0.05 mm |
|
TENSILE STRENGTH |
≤4.5 MPa |
|
SULFUR CONTENT |
≤1300 PPM |
|
LINEAR VELOCITY |
2.0 M/S |
|
CHLORINE CONTENT |
≤50 PPM |
