		Graphite Packing Series
		Expanded Graphite Packing High Strenght Graphite Packing
		Inconel Mesh Wrapping Graphite Packing Graphite Packing Impregnated PTFE
		Graphite Packing Carbon Fibre Corner

Graphite Fibre Packing Impregnated PTFE

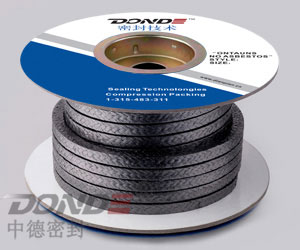

Item No.:ZD-P1107

Description:Graphite braided packing impregnated with PTFE latex is made from expanded graphite fiber impregnated with mixed PTFE latex and inert lubricant.This kind of graphite packing has better resist cautery capability and effective heat exchange capability.Graphite impregnated PTFE packing has perfect self-lubrication.It is widely used in sealing pump shaft.Graphite impregnated PTFE packing can also be used in sealing water,steam,solvents for agitators,mixers,autoclaves and centrifugal pumps ect.

Main Specification:

Temperature	Up to 280℃
Pressure	30MPa
PH range	0-14
Linear speed	20M/S
Size	33mm-6060mm（or as request）

Parameter:
Note: 3X3 is twisting instead of weaving.

Cross-section area (mm)	Density （g/cm3）	g/m	Cross-section area (mm)	Density （g/cm3）	g/m
3X3	1.25~1.30	12	8X8	1.15~1.25	97
4X4	1.25~1.30	21	9.5X9.5	1.15~1.25	108
4.7X4.7	1.25~1.30	31	10X10	1.15~1.25	120
5X5	1.25~1.30	32	11X11	1.15~1.25	145
6X6	1.25~1.30	45	12X12	1.15~1.25	172
6.5X6.5	1.25~1.30	53	12.5X12.5	1.15~1.25	194
7X7	1.25~1.30	82	14X14	1.15~1.25	235
15X15	1.15~1.25	270	24X24	1.0~1.10	615
16X16	1.10~1.20	294	25X25	1.0~1.10	677
17.4X17.4	1.10~1.20	348	28X28	1.0~1.10	823
18X18	1.10~1.20	373	30X30	1.05~1.10	945
19X19	1.05~1.15	397	32X32	1.05~1.10	1075
20X20	1.05~1.15	440	35X35	1.00~1.05	1255
22X22	1.05~1.15	532	40X40	0.95~1.05	1600

How to Order：

Item	Order Code
Cotton fibre reinforced graphite packing	ZD-P1100
Glass fibre reiforced graphite packing	ZD-P1101
Stainless steel wire reinforced graphite packing	ZD-P1102
Nickel wire reinforced graphite packing	ZD-P1103
Inconnel wire reinforced graphite packing	ZD-P1104
Innconel mesh jacket graphite packing	ZD-P1105
High strength graphite packing for temperature and high pressure	ZD-P1106
PTFE impregnated graphite packing	ZD-P1107
No ignition loss graphite packing	ZD-P1108
Expanded graphite packing with carbon fiber corners	ZD-P1109

For more information,please contact with us directly,thanks！
