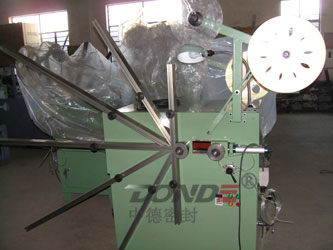

Medium Winder for SWG

Item No:ZD-M1500

Description:It is a desktop winding machine, which can produce spiral wound gasket without inner ring from 18mm to 200mm. Driven by variable frequency gear motor, with special tool to take off molds of gaskets without inner ring easily, no need to uninstall molds.

Options:

1.V or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm

2.Molds of customized size are available on request.

Technical Parameter:

Gasket Size	3/4”-6” without inner ring
Nominal Thickness	4.5mm
Maximum Outer Diameter	200mm
Minimum Inner Diameter	18mm
Repeatability of Outer Diameter	±0.5mm
Rotational Speed	0 – 240 rpm
Total Power	2.2 KW
Motor Power	0.75 KW
Voltage	380V/220V
Air Pressure	6-8 BAR
Variable Frequency Controller	2.2G
Dimension	10509001600mm
Weight	210 KG
