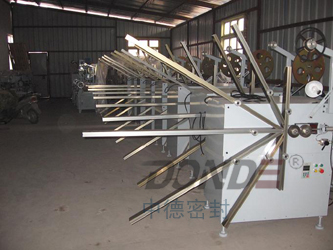

Large Winder for SWG (Vertical Style)

Item No:ZD-M2500B

Description:It is a vertical winding machine, which is designed to produce spiral wound gasket with inner ring and without inner ring from 200mm to 1600mm. driven by variable frequency gear motor. Dual roller drive gasket by ID and OD to make winding stable. With OD control tools

Option:

1.V or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm

Technical Parameter:

Gasket Size	with inner ring / without inner ring
Nominal Thickness	4.5mm
Maximum Outer Diameter	1600mm
Minimum Inner Diameter	200mm
Repeatability of Outer Diameter	±0.8mm
Linear Speed	0-800mm/s
Total Power	2.2 KW
Motor Power	1.5 KW
Voltage	380V/220V
Air Pressure	6-8 BAR
Variable Frequency Controller	2.2G
Dimension	22008501800mm
Weight	220 KG
