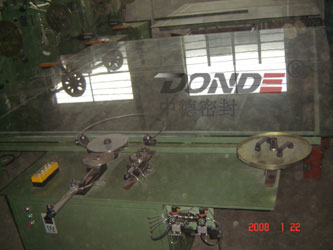

Large Winder for SWG (Horizontal Style)

Item No:ZD-M2500

Description:It is a horizontal semi-automatic winding machine, which is designed to produce spiral wound gasket with inner ring and without inner ring from 300mm to 2500mm/3200mm. welding point quantity and position is set simply in advance.

Options:

1.V or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm

2.Flat metal strip feeder

3.Maximum size 2500mm or 3200mm

Technical Parameter:

Gasket Size	with inner ring / without inner ring	with inner ring / without inner ring
Nominal Thickness	4.5mm	4.5mm
Maximum Outer Diameter	2500mm	2500mm
Minimum Inner Diameter	300mm	300mm
Linear Speed	0 – 800mm/s	0-800mm/s
Total Power	2.2 KW	8KW
Motor Power	0.75 KW	0.75KW
Welding Power	/	6KW
Voltage	380V/220V	380V/220V
Air Pressure	6-8 BAR	6-8BAR
Variable Frequency Controller	2.2G	2.2G
PLC	/	XINJIE
Dimension	34002600980mm	34002600980mm
Weight	500 KG	550 KG
